Nuovo

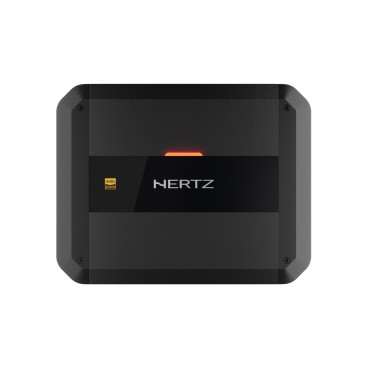

HERTZ DP 4.300

189,00 €
Tasse escluse

HERTZ DP 4.300

Quantità
Ultimi articoli in magazzino

Specifiche generali
Channels 4 - 3 - 2
Amp class AB
POWER SUPPLY
Nominal power supply voltage (fuse) 11 ÷ 15 VDC (2 x 20 A)
Operating power supply voltage 6.5 ÷ 16.5 VDC
Idling current 0.8 A
Standby current draw 5 uA
Consumption, MIN load impedance (Max Musical Power) 24 A
Remote IN 4 ÷ 15 VDC (1.5 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC
Efficiency 59%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power 0.015%
Damping factor @ 1 kHz, 1W 105
Bandwidth @ -3 dB 10Hz ÷ 45kHz
S/N ratio (A-weighted @ 1 V Input) 100 dBA
Minimum load impedance
@ 4 Ch: 2 Ω
@ 3 Ch: 2 Ω + 2 Ω + 4 Ω
@ 2 Ch: 4 Ω
Adjustable Crossovers yes
Potenza in uscita
Output power (RMS) @ 1% THD:
4Ch @ 4Ω 60 W x 4
4Ch @ 2Ω 85 W x 4
3Ch @ 4Ω 60 W x 2 + 170 W x 1
3Ch @ 2Ω / 4Ω 85 W x 2 + 170 W x 1
2Ch @ 4Ω 170 W x 2
Output Power (RMS) @ 14.4 VDC, THD 10%:
4Ch @ 4Ω 75 W x 4
4Ch @ 2Ω 105 W x 4
3Ch @ 4Ω 75 W x 2 + 210 W x 1
3Ch @ 2Ω / 4Ω 105 W x 2 + 210 W x 1
2Ch @ 4Ω 210 W x 2
Total Power 420 W
170
