Nuovo

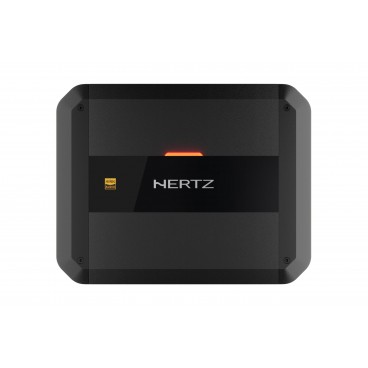

Hertz DP 2.200

159,00 €
Tasse escluse

Hertz DP 2.200

Quantità
Non disponibile

Specifiche generali

Channels 2 - 1
Amp class AB
POWER SUPPLY
Nominal power supply voltage (fuse) 11 ÷ 15 VDC (2 x 20 A)
Operating power supply voltage 6.5 ÷ 16.5 VDC
Idling current 0.65 A
Standby current draw 5 uA
Consumption, MIN load impedance (Max Musical Power) 15 A
Remote IN 4 ÷ 15 VDC (1.5 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC
Efficiency 60%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power 0.01%
Damping factor @ 1 kHz, 1W 130
Bandwidth @ -3 dB 10Hz ÷ 45kHz
S/N ratio (A-weighted @ 1 V Input) 100 dBA
Minimum load impedance
@ 2 Ch: 2 Ω
@ 1 Ch: 4 Ω
Adjustable Crossovers yes
Potenza in uscita
169

Riferimenti Specifici
