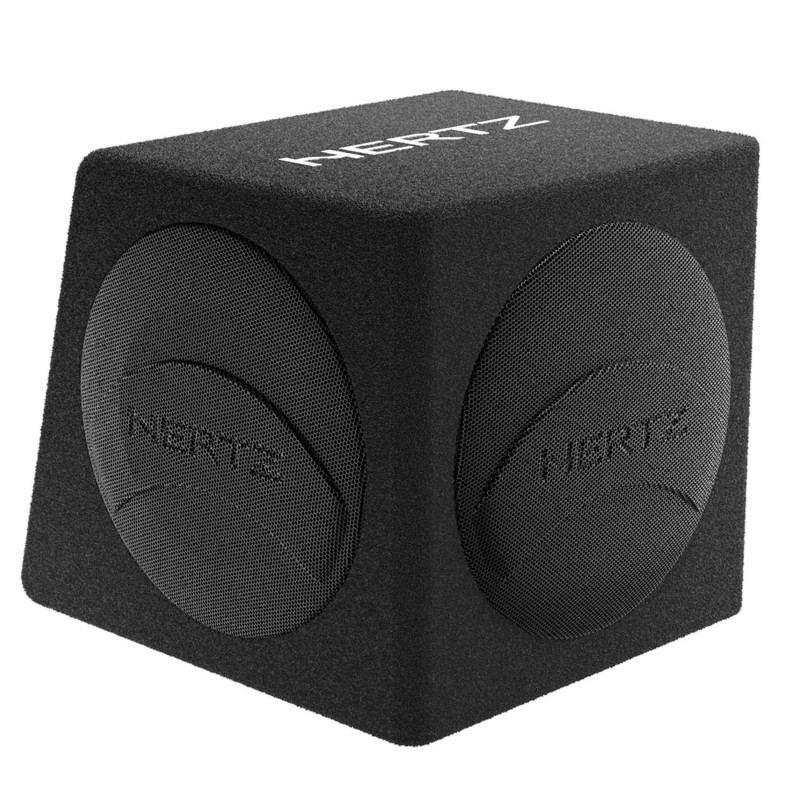

Hertz DBA 200.3

249,00 €
Tasse escluse

HERTZ DBA-200.3

Quantità
Non disponibile

Distortion – THD (1kHz @ 4Ω): 0.05 %
Bandwidth (-3 dB): 35 ÷ 120 Hz
S/N ratio (A weighted @ 1V): 103 dBA
Damping factor (100 Hz @ 4Ω): 100
Input sensitivity (PRE IN): 0.3 ÷ 5 V RMS
Input sensitivity (HIGH IN): 1.2 ÷ 18 V RMS
Input impedance (PRE IN): 7k Ω
Input impedance (HIGH IN): 470k Ω
Output power (RMS) 14.4 VDC, 1% THD, 4Ω: 110 W
Max dynamic power: 140 W
Signal Inputs / Filters

Inputs: Pre IN / Speakers IN
Filters (Full/Lo-Pass)
Continuous adjustable: 50 ÷ 120 Hz @ 12 dB/Oct.
Subsonic (Hi-Pass) fixed: 35 Hz @ 24 dB/Oct.
Speakers polarity: 0 – 180°
Other Functions

Remote IN: 7 ÷ 15 VDC – 1 mA
Fuse: 20 A
